冷却塔机电

手艺参数:
流量:3~192 m3/h
扬程:13~30m
收支口径: 1-5"
功率: 0.37 kW~15 kW
转速: 2900r/min
介质请求:≤80°C的净水或物理化性子近似于水的液

以后您的地位：精品人妻午夜一区二区三区四区-国产午夜精品一区二区三区四区>>冷却塔配件>>冷却塔机电

菱致冷却装备无限公司设置装备摆设的冷却塔机电特色:

乐音小，个人防护等级好，有效节约,耐温度低120°C,彩金真空电镀螺丝帽,轴心镀铬漆/防生了锈,进口轴子,45号钢电机定转子。

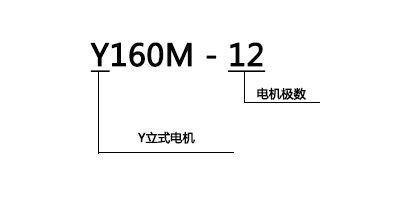

型号申明

冷却塔公用机电型号申明

冷却塔公用机机电能参数表

型號	电功率kw	马力HP	电流大小A	电机转速R.O.M	效应EFF(%)	输出质数Power factor	堵转转距双倍转距	堵装功率增加功率A
Y80-6	0.18	1/4	0.74	900	56	0.66	2	5.5
Y80-6	0.37	1/2	1.3	900	62	0.7	2	5.5
Y802-6	0.55	3/4	1.8	900	65	0.72	2	5.5
Y802-8	0.18	1/4	0.65	690	56	0.66	2	5.5
Y802-8	0.37	1/2	1.15	690	62	0.7	2	5.5
Y90S-6	0.75	1	2.3	910	69	0.72	2	5.5
Y90S-8	0.55	3/4	1.88	700	67	0.6	2	5.5
Y90L-8	0.75	1	2.31	700	71	0.67	2	5.5
Y100L-6	1.5	2	3.9	940	76	0.76	2	6
Y100L-8	1.1	1.5	3.17	700	73	0.69	2	5.5
Y112M-4	4	5	8.8	1440	88	0.84	2.2	7
Y112M-8	1.5	2	5	690	75	0.68	1.8	5.5
Y112M-10	1.5	2	5.5	560	73	0.68	1.8	5
Y132S-4	5.5	7.5	11.6	1440	85.5	0.84	2.2	7
Y132M-10	7.5	10	15.4	1440	87	0.85	2.2	7
Y132M2-6	5.5	7.5	12.6	960	85.3	0.78	2.2	6.5
Y132S-8	2.2	3	6	710	78	0.71	2	5.5
Y132S-12	1.5	2	6	480	65	0.58	2.2	5
Y132M-12	2.2	3	7.6	480	76	0.58	2.2	5
Y160-4	11	15	22.6	1460	88	0.84	2.2	7
Y160-4	15	20	30	1460	88.5	0.85	2.2	7
Y160M-6	7.5	10	17	970	86	0.78	2.2	5.5
Y160-6	11	15	25	970	87	0.78	2	6
Y160-10	4	5	9.5	560	80	0.65	1.8	5
Y160M-12	3	4	8	480	80	0.71	2.2	6.5
Y180-6	15	20	31.4	970	89.5	0.81	2	6.5

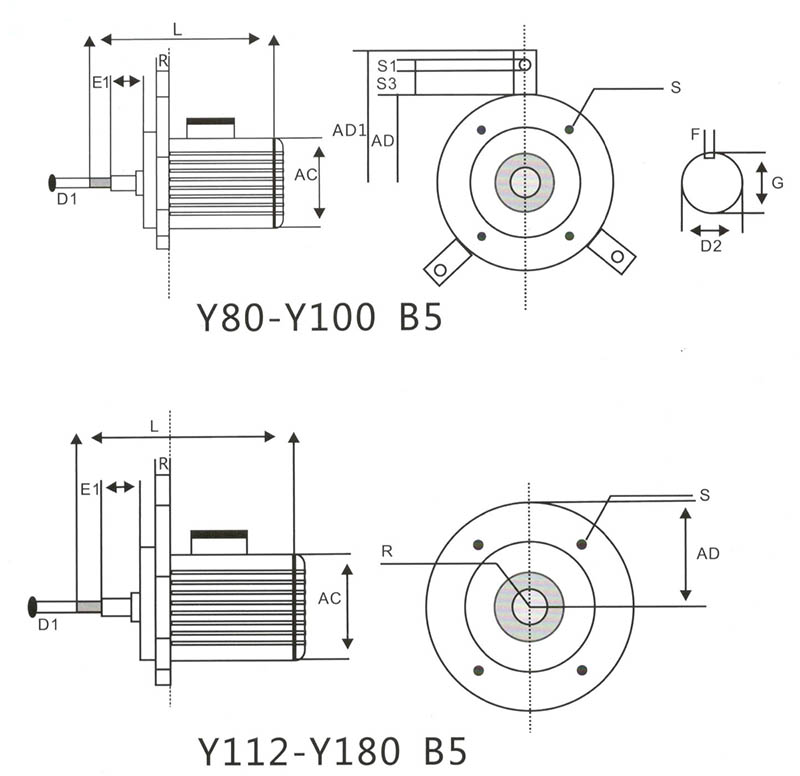

外型布局图及尺寸表

冷却塔公用机电形状尺寸

技术参数Modle	控制系统厚度															总尺寸大小
技术参数Modle	L	E1	D1	S1	AD1	AD	S2	S3	S	AC	R	D2	E2	E	T	F	D
Y801-6	308	20	16	12	103	77	18	25		152	28	18	55	60	5	5*35	18
Y802-6	308	20	16	12	118	77	18	40		152	24	18	55	60	5	5*35	18
Y802-8	308	20	16	12	118	77	18	40		152	24	24	55	130	5	5*35	24
Y90-6	340	20	16	12	120	80	20	35		154	21	20	55	60	5	6*35	20
Y90-8	340	25	16	12	122	90	20	32		172	22	24	55	130	5	8*35	24
Y100-6	360	20	16	12	130	80	20	32		190	22	20	55	53	5	6*35	20
Y100-8	385	25	16	12	125	90	19	32		195	22	24	55	130	5	8*35	24
Y112-4	340		内8			124			14	220	11	28	60		5	8*40	28
Y112-8	430	25	24			124			15	220	11	28	80	50	5	8*50	28
Y112-6	465	25	24			124			15	220	11	28	80	80	5	8*50	28
Y132-8	435		内14			150			14	254	11	38	80		5	10*50	38
Y132-12	530	25	24			150			15	254	11	34	80	105	5	8*50	34
Y132-12	549	25	24			150			15	254	11	34	80	125	5	8*50	34
Y160-6	570		内12			175			18.8	320	11	42	110		5	12*60	42
Y160-10	660	30	25			175			18.8	320	16	38	105	105	5	10*70	38
Y160-12	660	30	25			175			18.8	320	16	38	105	105	5	10*70	38
Y180-4	575		内14			175			18.8	320	16	48	110		5	14*70	48
